SKU: aseg-galloni-titancast
Titancast

In stock / Shipping Available

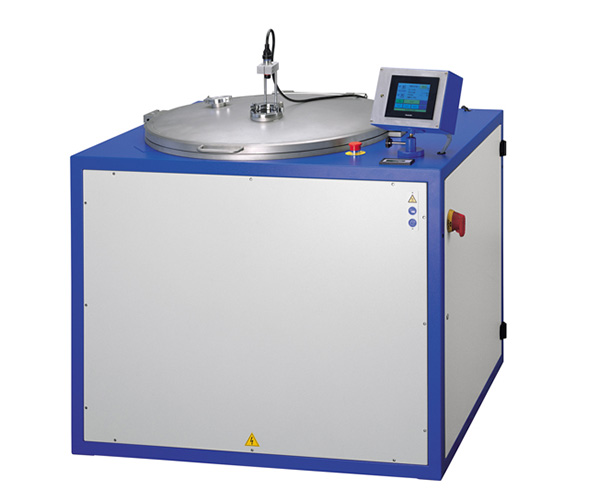

Titancast is a centrifugal casting machine based on the Fusus New Heavy Duty and developed to elevate the design parameters and meet the casting requirements of titanium and other particular alloys.

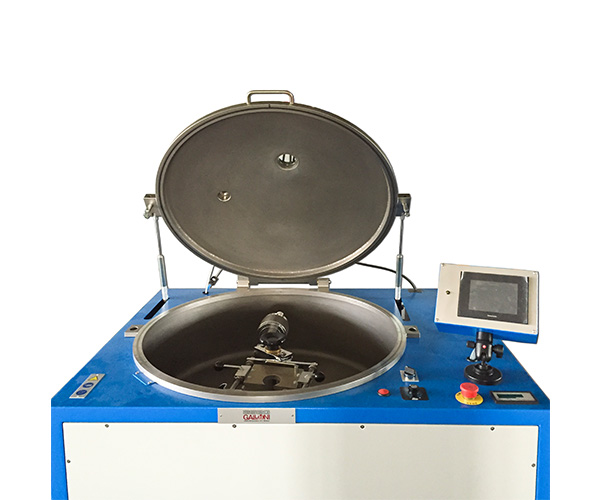

The casting chamber withstands a vacuum level of 0.001 mbar (1×10-3); the chamber is made of stainless steel, with convex cover and bottom (flat surfaces are not suitable for such vacuum levels).
Medium-frequency induction melting; when processing gold it is possible to activate the self-stirring fuction to ensure the homogeneity from the top to the bottom of the castingtree.
Dynamic double-swing arm for straight and smooth entry of molten metal into the center of the flask.
Two temperature control systems: immersion type S thermocouple for gold alloys and infrared state-of-the-art Instrument Dual-Color Optical pyrometer with temperature setting from 1,000 to 2,200 °C (1832 – 3992°F) ± 1%

由於單價較高,預下單購買或索取報價者,請先與我們聯絡。

Read More

Share on

Titancast is a centrifugal casting machine based on the Fusus New Heavy Duty and developed to elevate the design parameters and meet the casting requirements of titanium and other particular alloys.
The casting chamber withstands a vacuum level of 0.001 mbar (1×10-3); the chamber is made of stainless steel, with convex cover and bottom (flat surfaces are not suitable for such vacuum levels).
Medium-frequency induction melting; when processing gold it is possible to activate the self-stirring fuction to ensure the homogeneity from the top to the bottom of the castingtree.
Dynamic double-swing arm for straight and smooth entry of molten metal into the center of the flask.
Two temperature control systems: immersion type S thermocouple for gold alloys and infrared state-of-the-art Instrument Dual-Color Optical pyrometer with temperature setting from 1,000 to 2,200 °C (1832 – 3992°F) ± 1%

•Electrical:Trifase / Threephase 230/400 V – 50/60 Hz – 10kW
•Crucible Volume:in zirconio sinterizzato da 200 g, 350 g, 500 g per platino;
 in grafite da 2 kg oro 24 kt (pirometro ad immersione solo su richiesta);
 in materiale speciale fino a 200 g per titanio / Sintered zirconium (200 g, 350 g and 500 g) for platinum
 Graphite, 2 kg for 24 kt gold (immersion pyrometer upon request)
 Special material, up to 200 g titan
•Max Temperature:2200°C (1832 – 3992 °F)
•Flangeless Flask:
 Ø min. 80 mm – Ø max. 120 mm
 h min. 100 mm – h max. 160 mm
•Water Cooling Supply:ad acqua 4 bar all’ingresso da rete idrica, oppure tanica da 500 litri con pompa, chiller (su richiesta cliente) / Tap water with 4 bar at the machine inlet, or 500 tank with pump, chiller (option)
•Compressed Air Supply:6 ∼ 7 bar
•Inert Gas Supply:argon, azoto, elio / Helium, Argon, Nitrogen
•External Vacuum Pump:
(ad extra costo) 80 m³ idonea a creare un livello di vuoto di 0,001 mbar (1x 10−3) / (at extra cost) 80 m³ suitable for 0,001 mbar (1x 10-3) vacuum level
•Dimensions:base 1150 x 860 mm – h 1300 mm
•Weight:320 Kg
•Guarantee:12 months (only when using Galloni original consumables)
